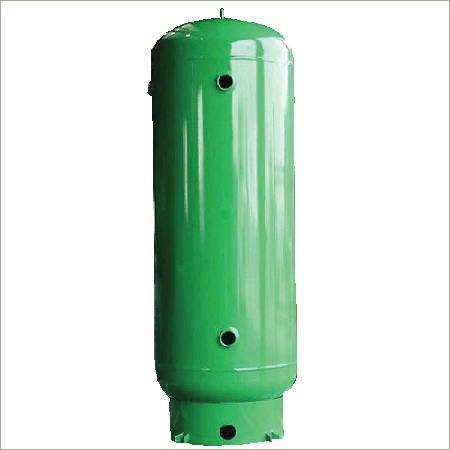

air receivers

air receivers
air receivers
Send Inquiry
Product Code : Series 1000
Product Description

Technical specification

Design

IS-2825 / ASME SEC VIII DIV -1

Capacity

30 L to 17000L

Max. Shell Thickness

25 mm

Standard Design Pressure

140 psig

Hydro Test Pressure

210 psig

Manway

Bolted and self closing screwed type

MOC

SA516 GR B , CS TO IS 2062

Painting

Epoxy / Enamel - 80 micron standard

Mounting

Saddle, Piped legs, Channel legs as per customer





Size

Recommended for capacity

MODEL NO

Volume (m³)

DIA.

HEIGHT

CFM

m³/ HR

AV-CS-187

0.3

600

830

110

187

AV-CS-323

0.5

600

1530

190

323

AV-CS-578

1

750

2000

340

578

AV-CS-969

1.5

900

2000

570

969

AV-CS-1200

2

1100

1700

710

1200

AV-CS-2554

3

1250

2000

1510

2554

AV-CS-3493

4

1400

2150

2055

3493

AV-CS-4420

5

1500

2350

2600

4420

AV-CS-5049

6

1600

2475

2970

5049

AV-CS-6800

8

1800

2950

4000

6800

AV-CS-8500

10

2000

2550

5000

8500

AV-CS-10200

12

2000

3200

6000

10200

AV-CS-11900

14

2000

3800

7000

11900

AV-CS-13600

16

2000

4450

8000

13600

AV-CS-15300

18

2200

4050

9000

15300

AV-CS-17000

20

2200

4600

10,000

17000
